Off-Road / Road-Legal L3E

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Unleash your adventure with the 72V Rawrr Mantis electric dirt bike. A powerful 7500W(Peak) motor and 72V 35Ah battery propels you to 80 Km/h, conquering tough terrain with ease. 19-inch wheels and a comfortable 34-inch seat height provide ultimate control.

Model: 72V Mantis

  • Rated Output Power: 5000W
  • Max Output Power: 7500W
  • Frame Material: Aluminum Alloy 6061

  • Speed Up  0-30 KM/H: 1.6s; 0-50 KM/H: 3.8s; 0-80 KM/H: 11.6s

  • Battery Capacity: 72V/35AH (2520WH)
  • 15-25 days for orders of 45 units or Less.
  • 20-45 days for orders of 100 units or less.
  • The above lead time is based on FOB Ningbo.
  • Any change in configuration or sticker may add more manufacturing time.

ROAD LEGAL EDITION

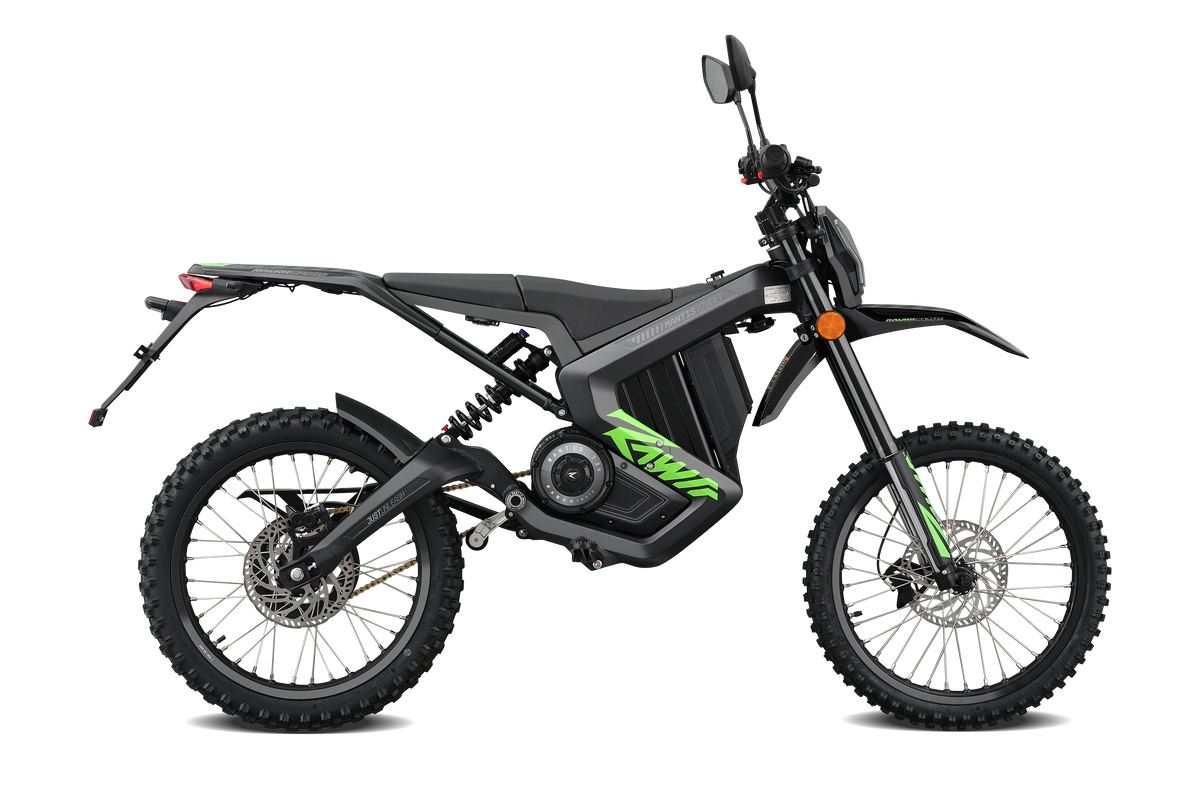

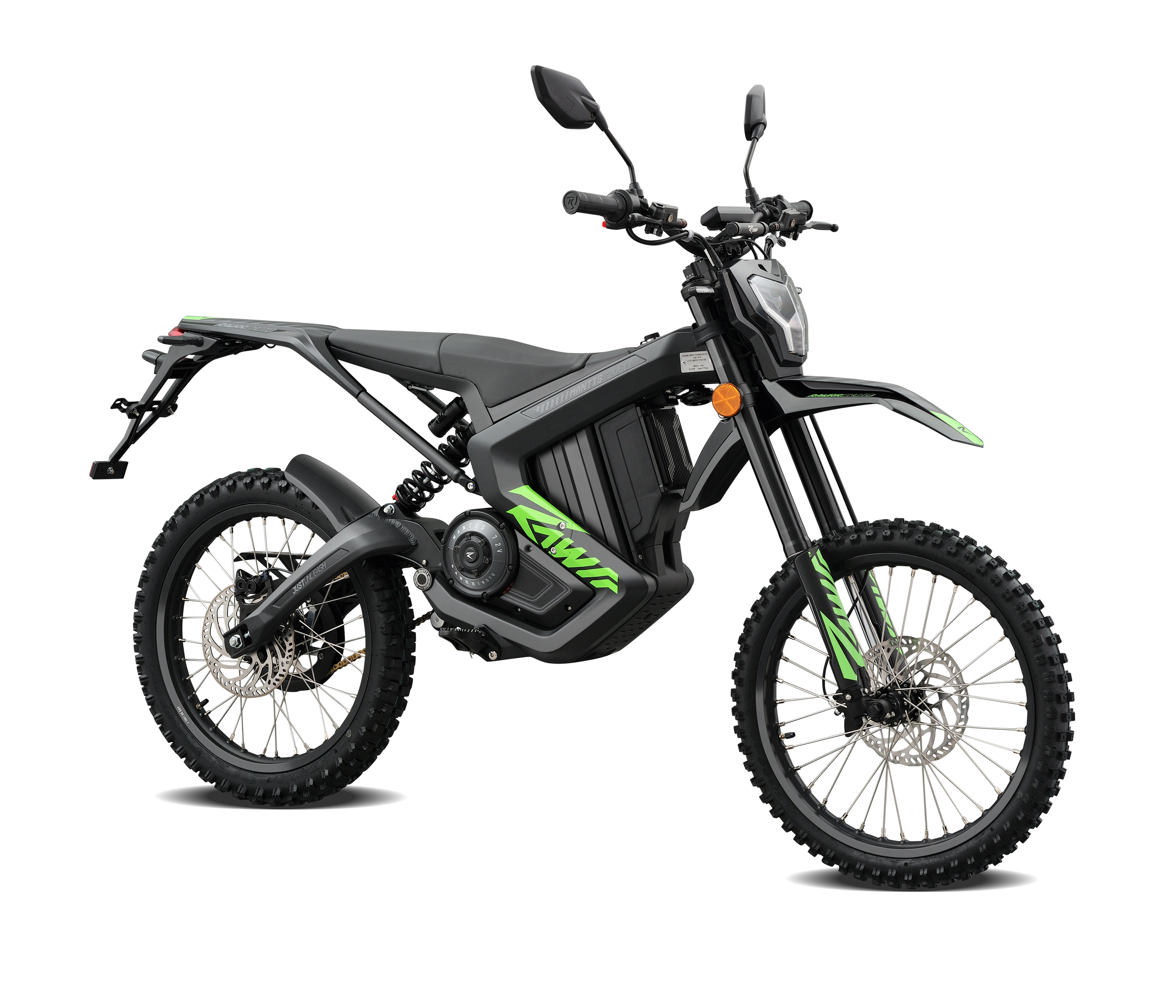

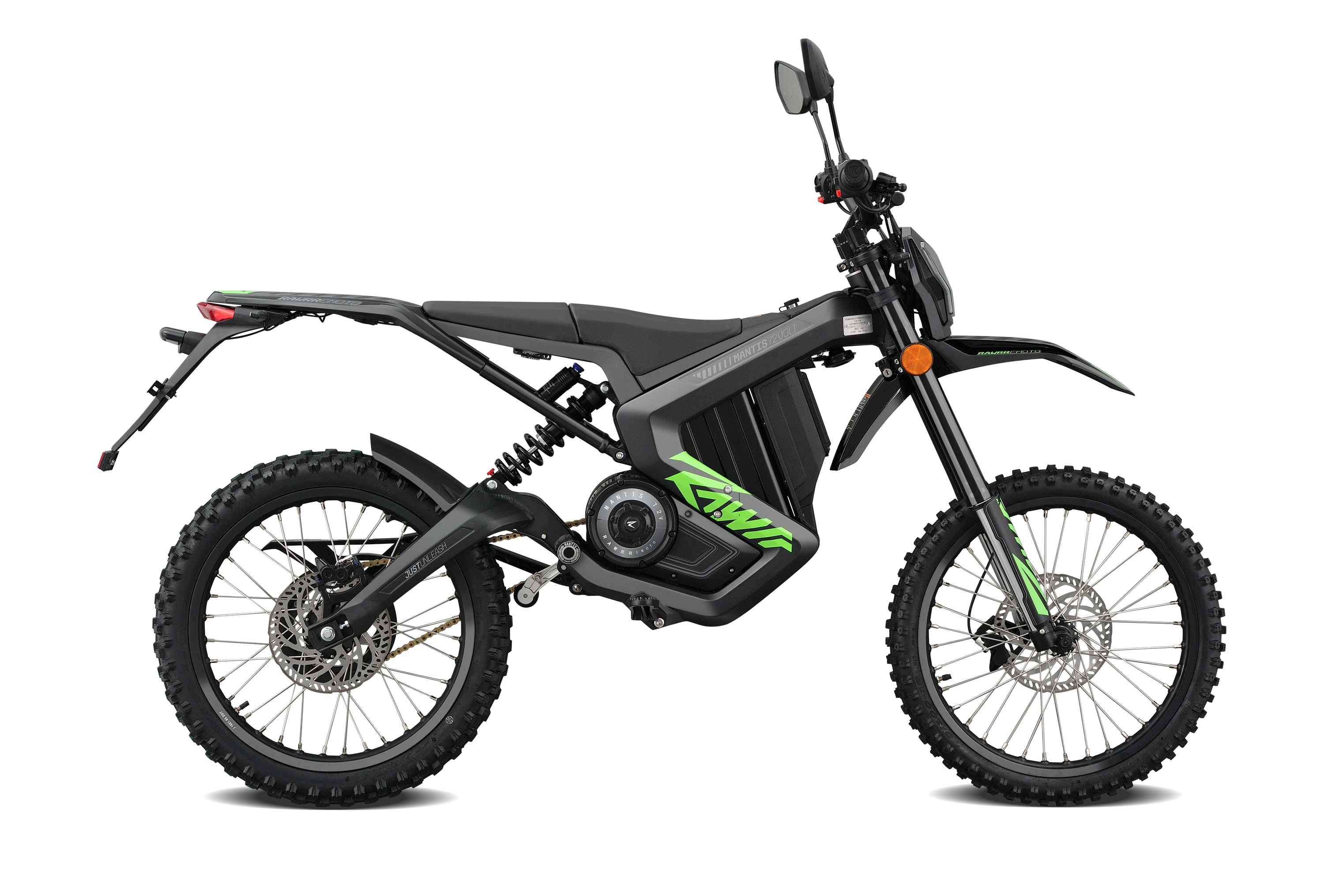

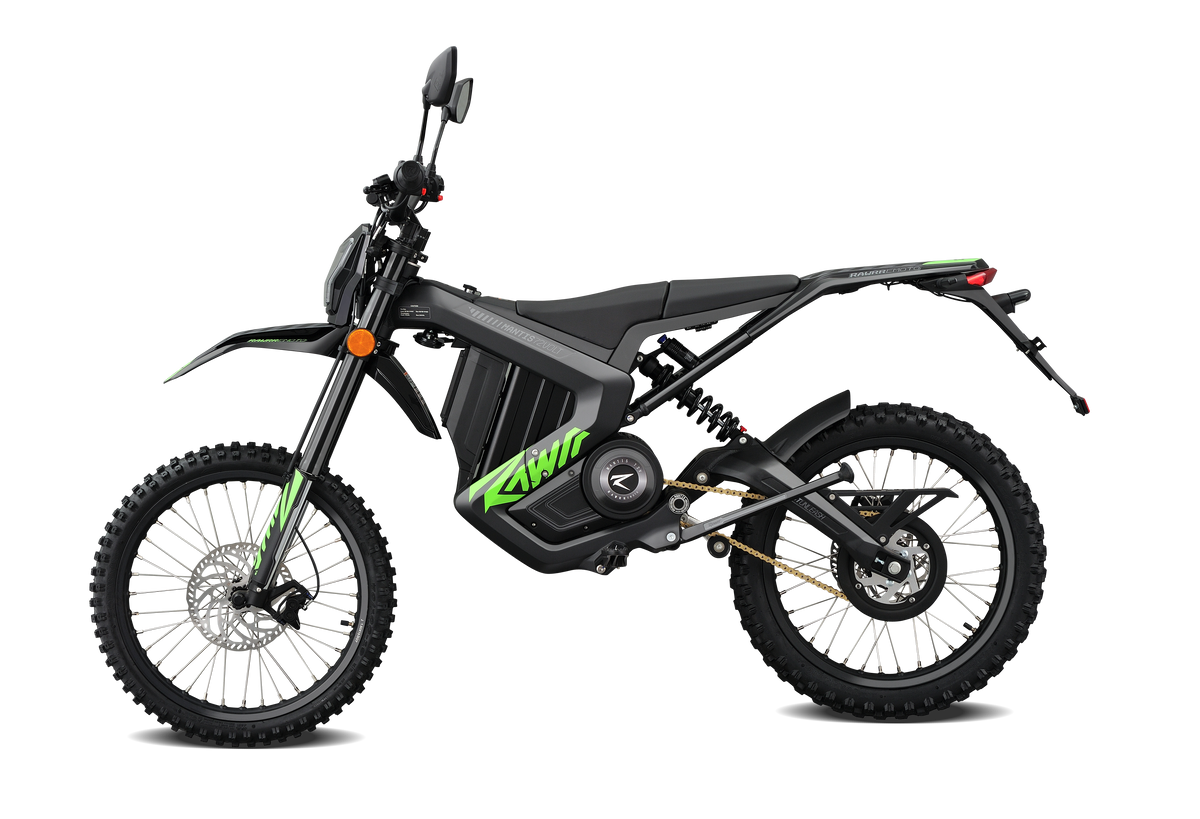

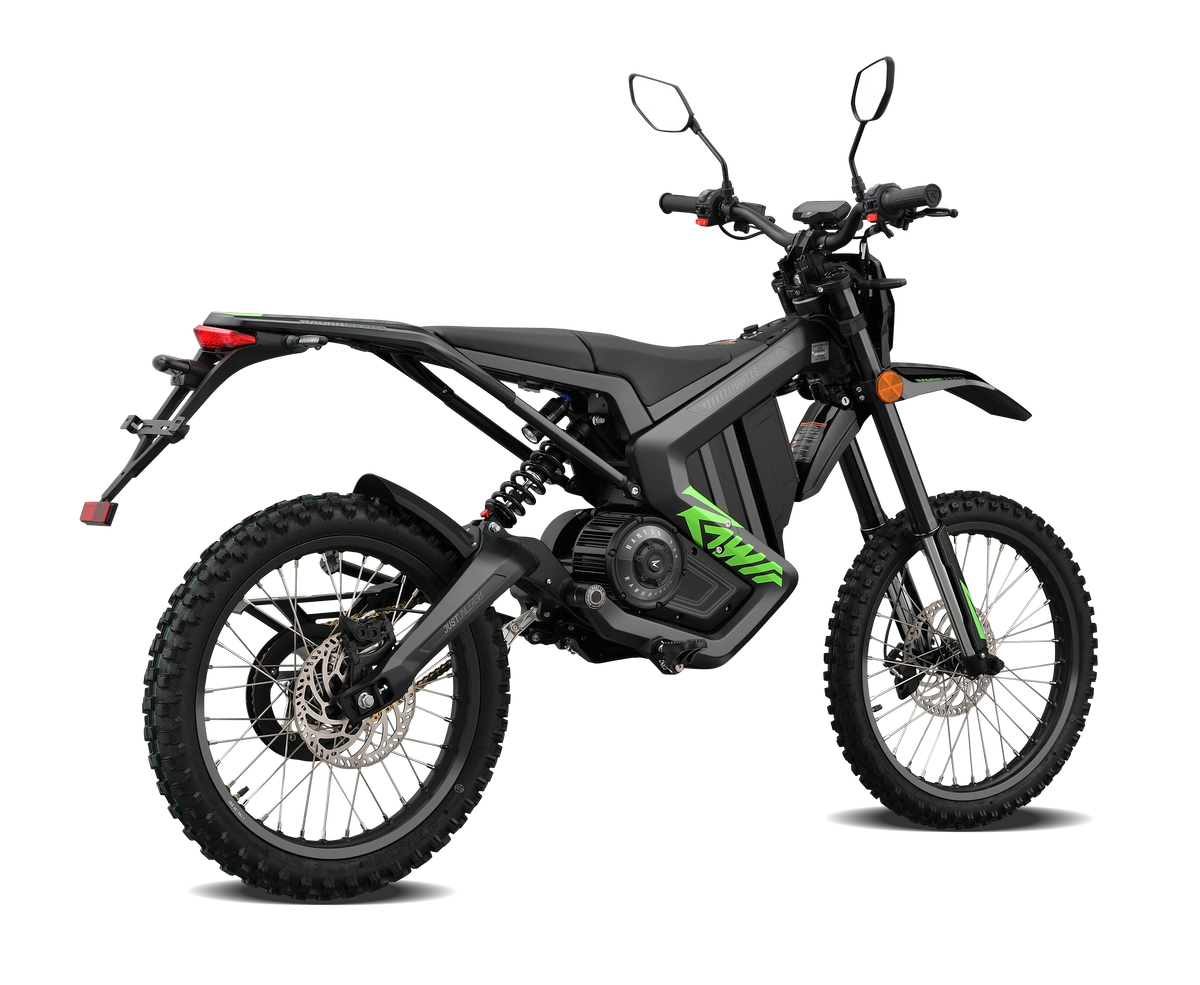

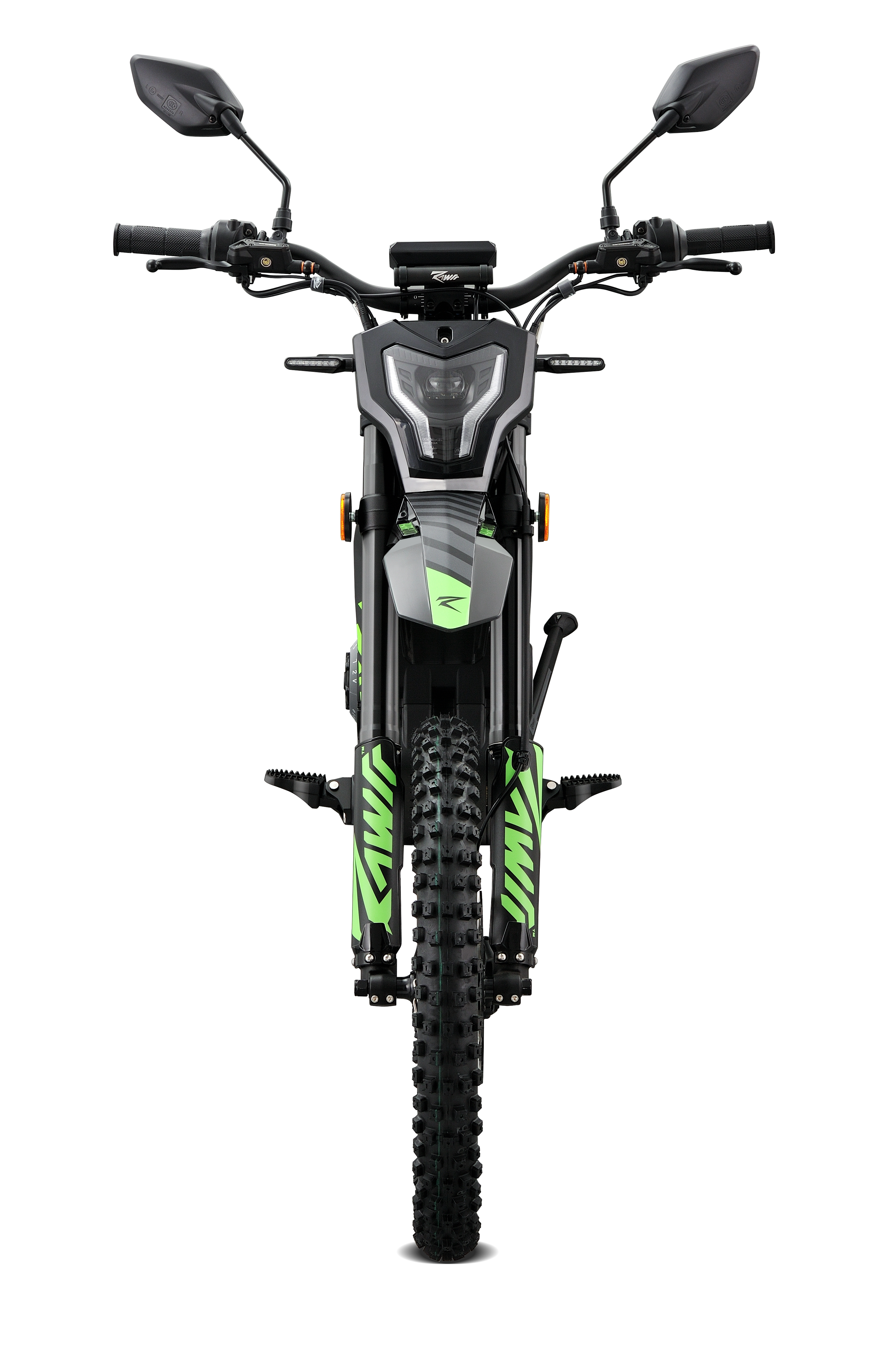

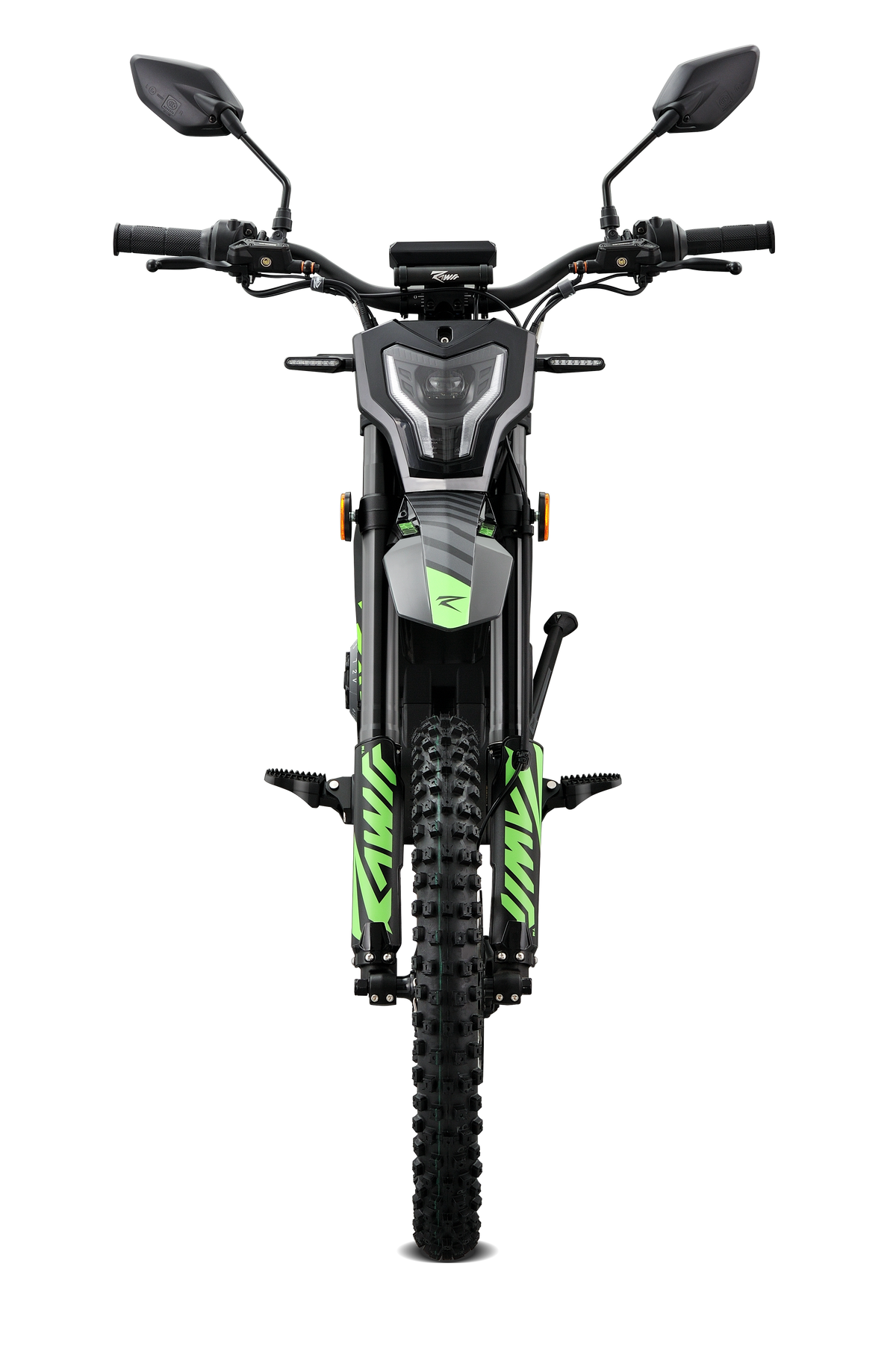

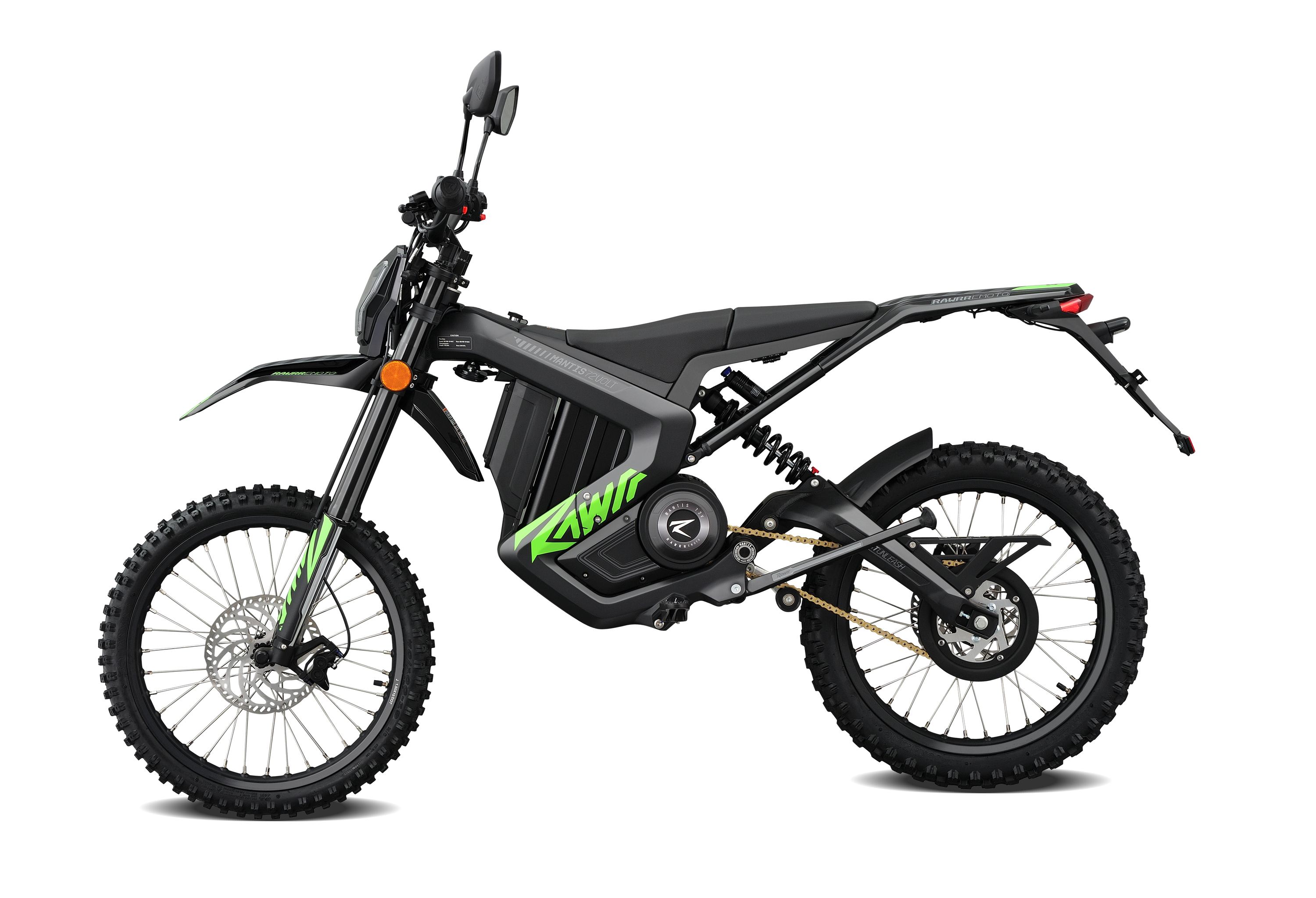

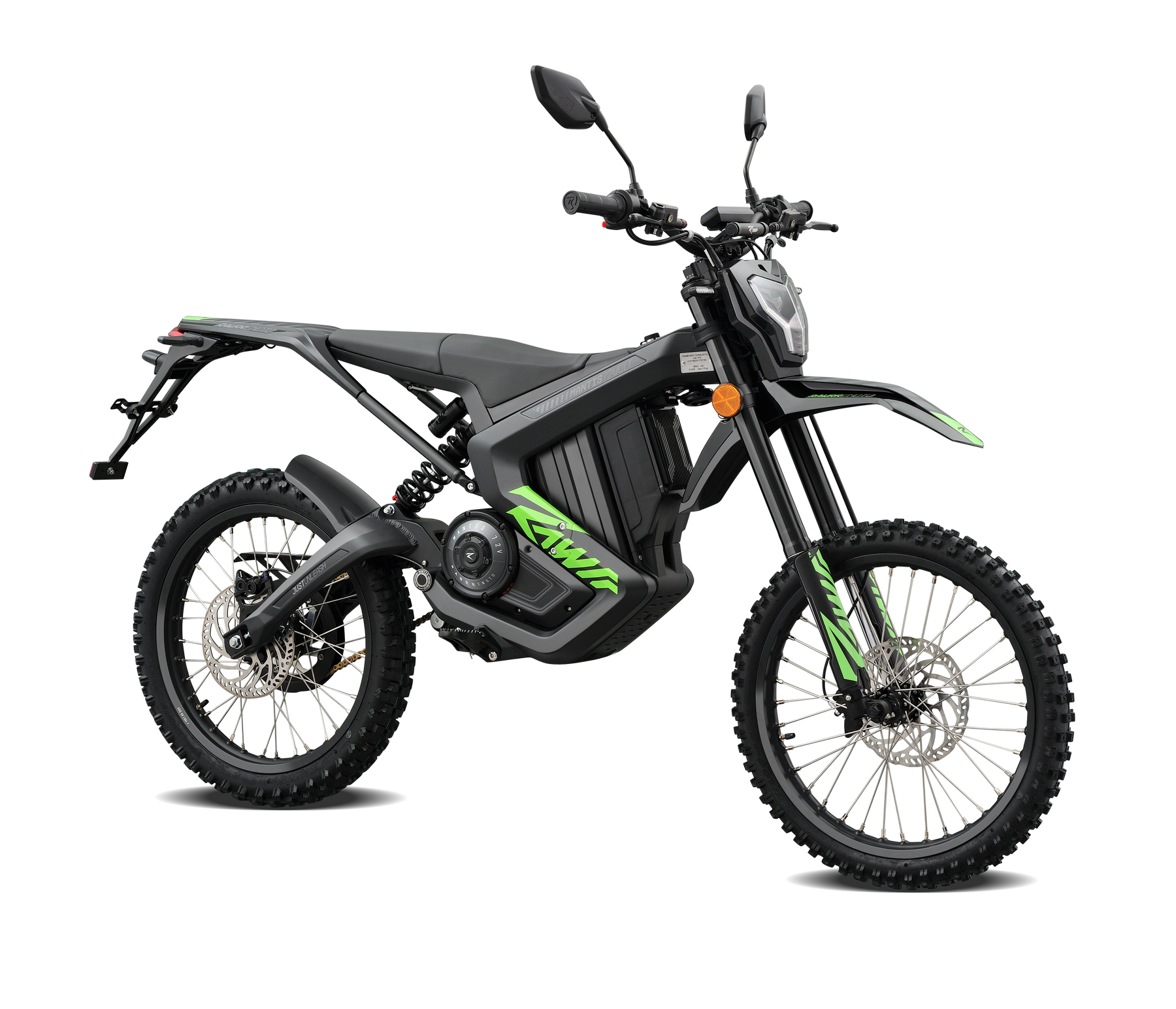

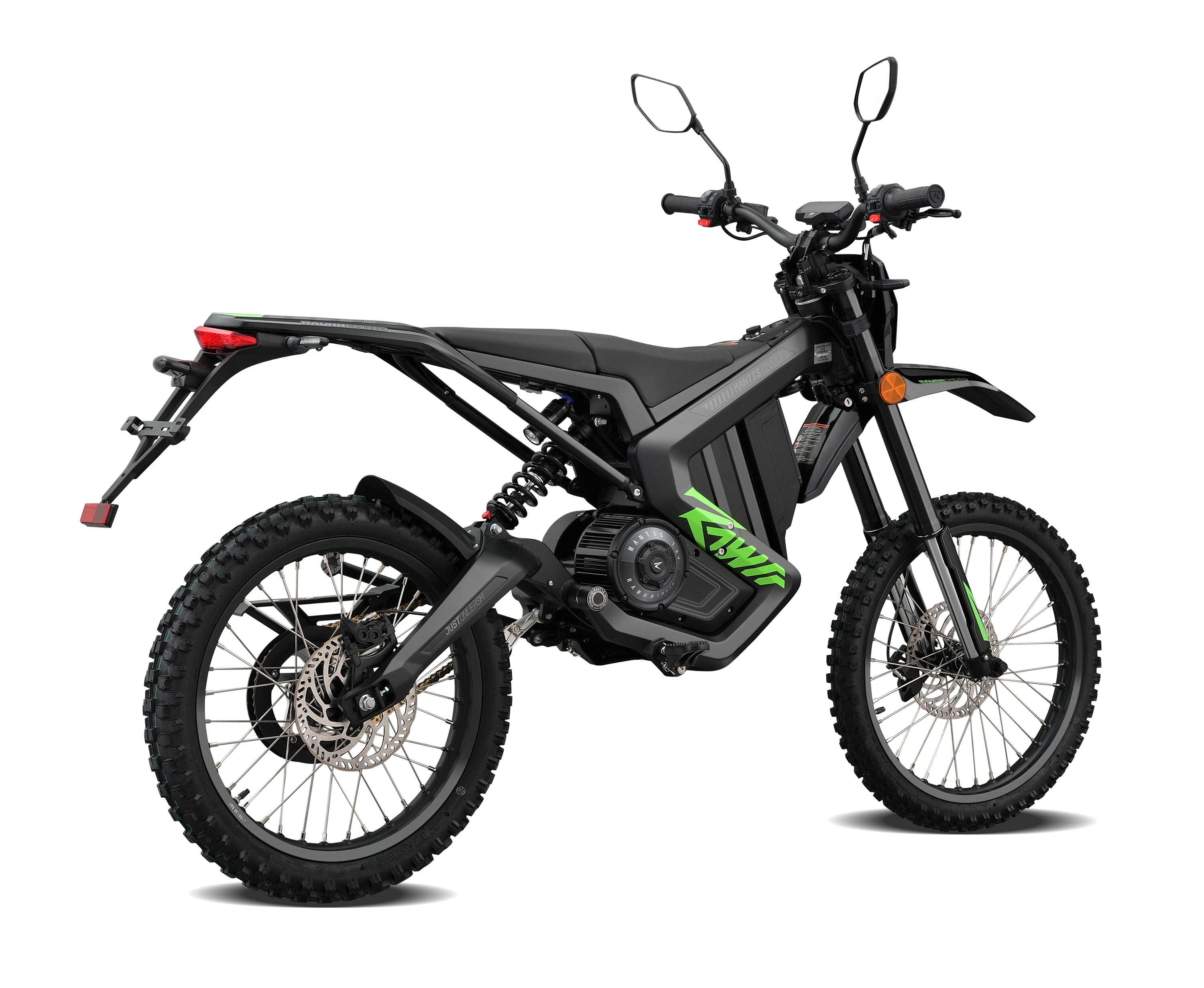

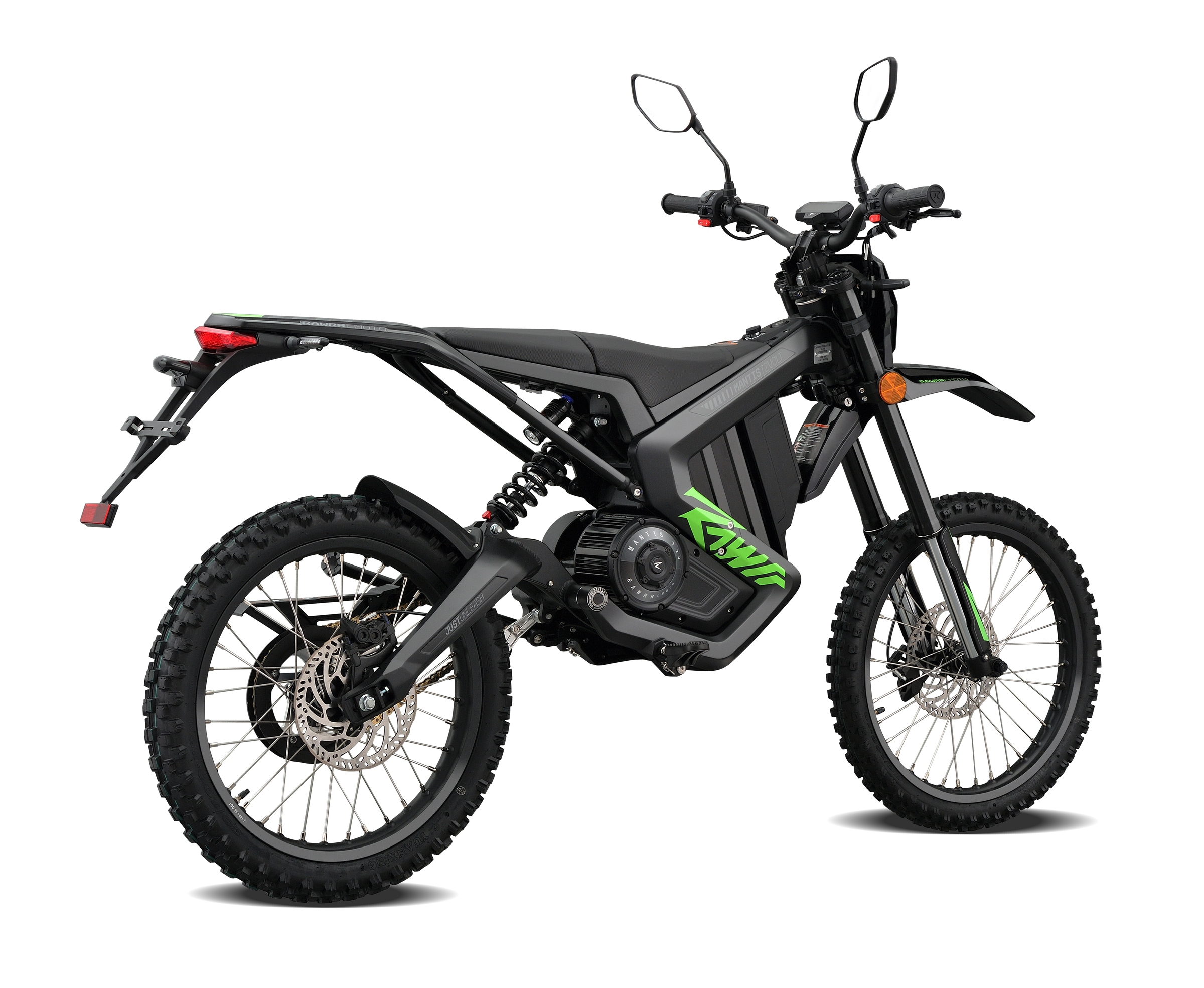

Road Legal Version-L3E Available

Street Ready. Trail Bound.

Packed with a complete street safety suite, the L3e road-legal version lets you bridge the gap between urban asphalt and off-road freedom. No trailer required—just twist the throttle and ride straight to the trails.
REQUEST ROAD LEGAL QUOTE
01 / 5
ROAD LEGAL EDITION Road Legal Version-L3E Available
Road Legal Version-L3E Available
01 / 5

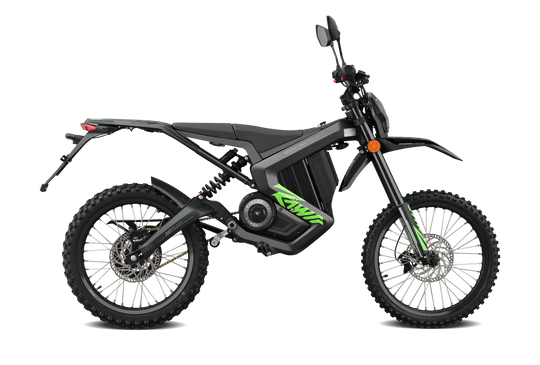

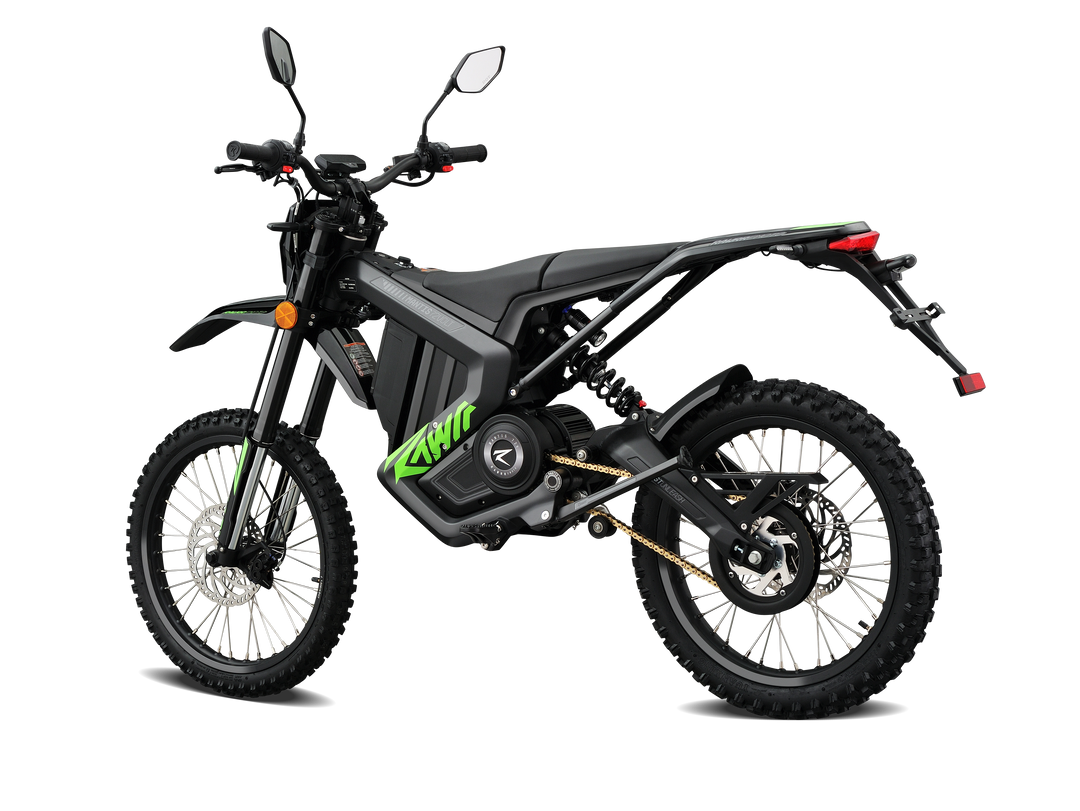

72V Mantis

Own Every Trail

The 72V RAWRR Mantis combines a spacious frame, long-travel suspension and serious electric performance for confident riding across demanding terrain. Built for longer adventures and riders of all sizes.
Own Every Trail

Watch the Mantis in Action

See the performance, capability and rider experience up close.

A guy is resting on a rawrr mantis model in a desert.
72V Mantis Model on a flower ground
A man and 72V rawrr mantis on desert
A rider riding on a RAWRR Mantis model in the desert.

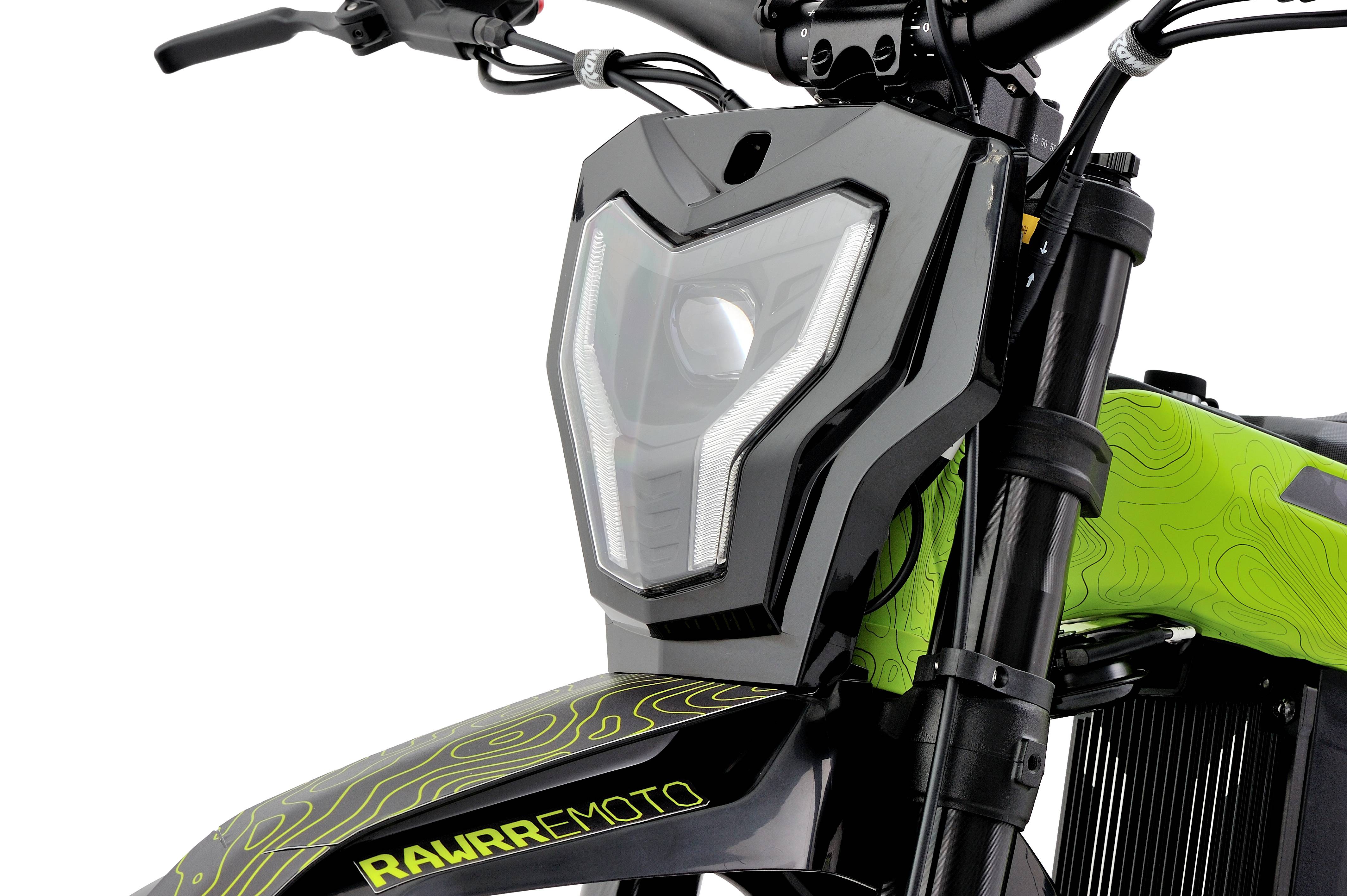

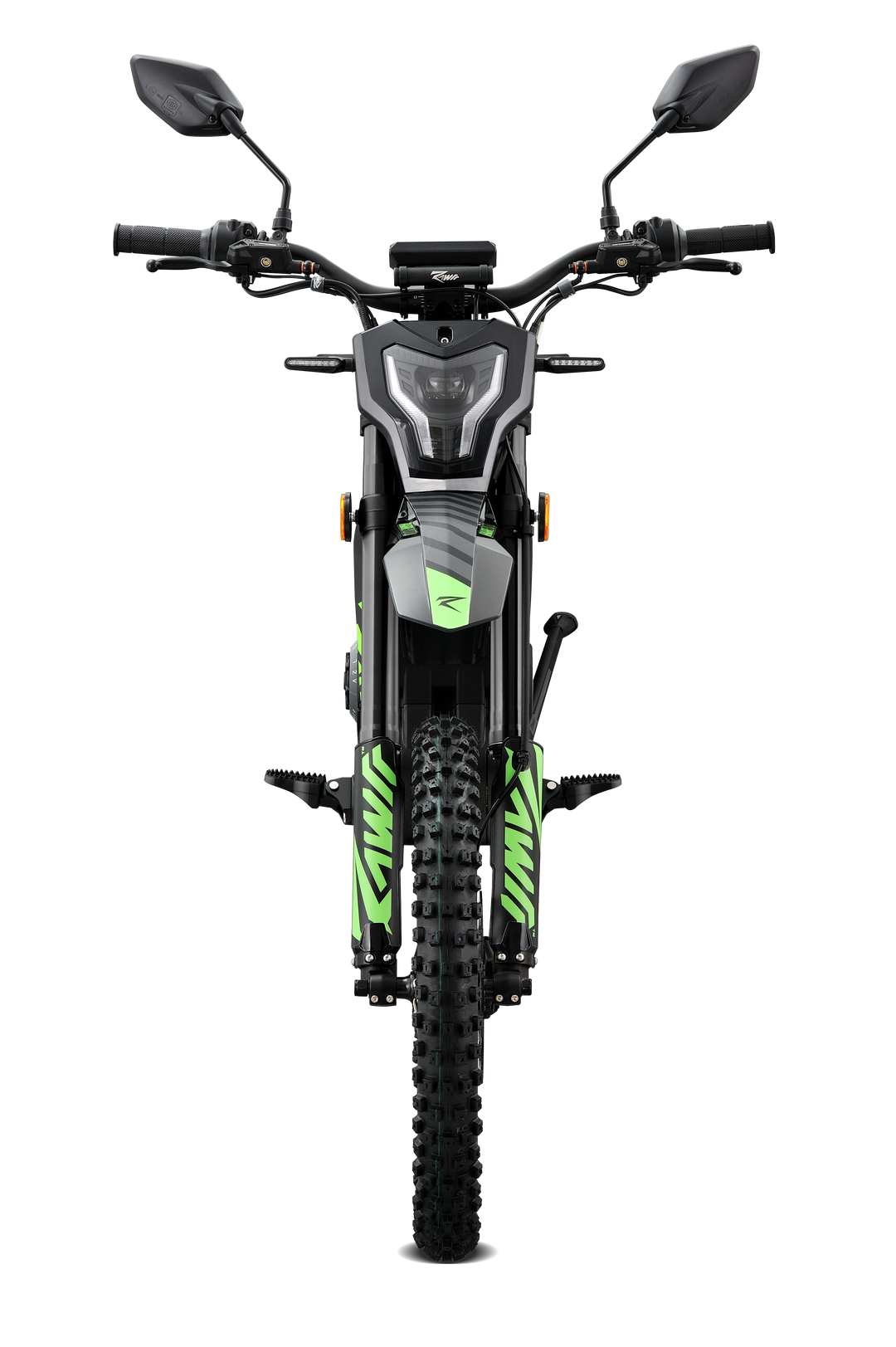

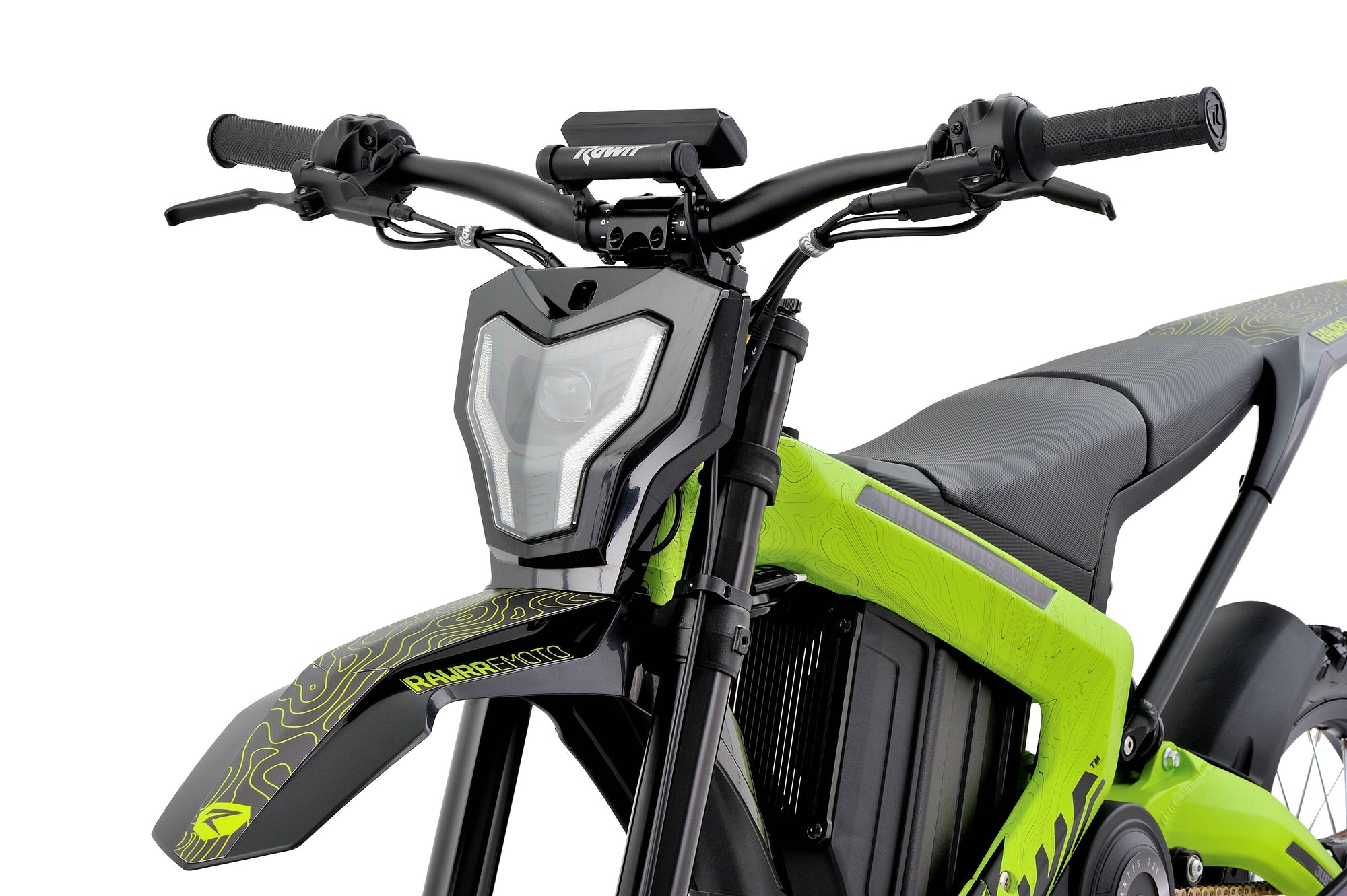

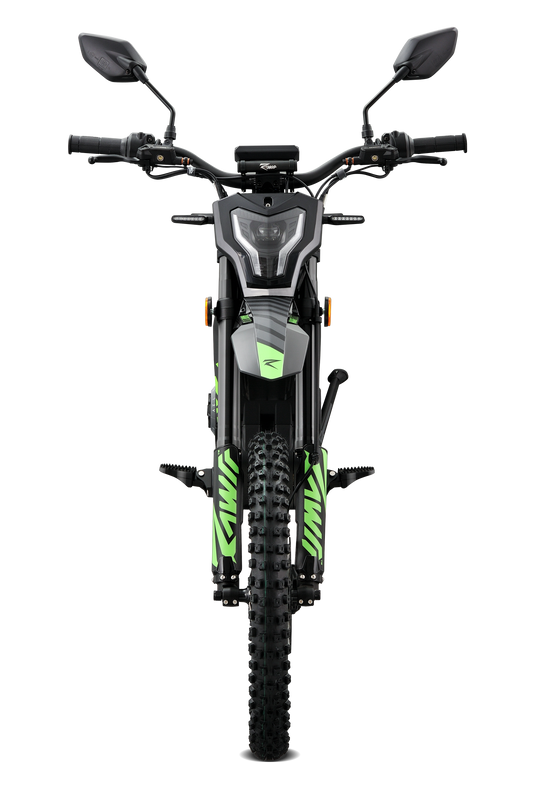

Mantis model front view with headlight at the center!

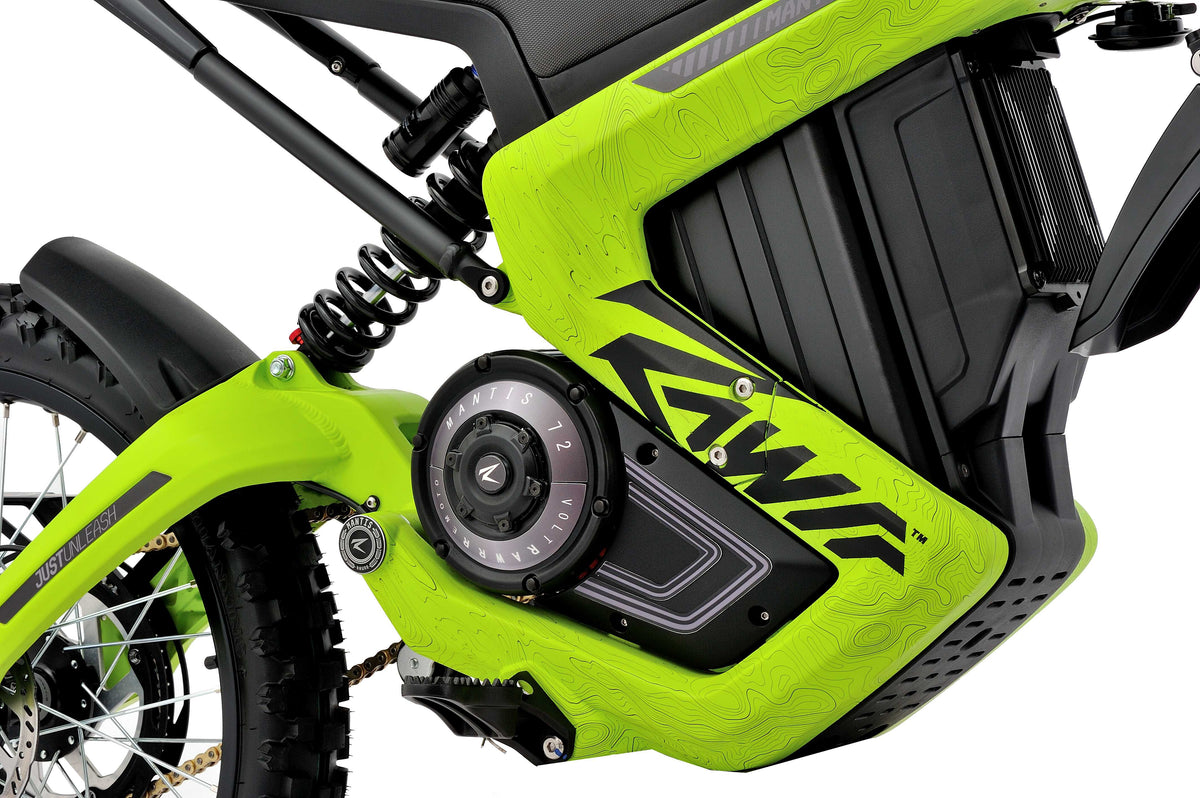

72V rawrr mantis body part
72V Mantis

Technical Specs

87 Km/H
Top Speed
120 Km
Range
45 Degrees
Climbing Ability
403 NM
Max Torque
Full specifications 3 categories
01

Mechanical

Frame Material
6061 Alluminum Alloy
Power Delivery
Gearbox and Chain Driven
Brake Type
4-Piston Hydraulic Disc Brakes
Front Brake Rotor Size
220 MM
Rear Brake Rotor Size
220 MM
Max Torque
403 NM
Front Fork Travel
200 MM
02

Electrical

Battery Info
72V 35Ah
Battery Type
Lithium Ion
Nominal Power Output
5000 W
Max Output Power
9500 W
Drive Modes
Eco / Sport / Race
Motor Type
PMSM
03

Dimensions

Length*Width*Height
2023*935*1320 MM
Wheelbase
1290 MM
Seat height
890 MM
Height of handlebar
1090 MM
Front Tire Size
70/100-19
Rear tire size
80/100-19
72V Mantis

Additional Info

Warranty

Rawrr Inc. provides the following warranty coverage:

  • 161 KM* warranty on workmanship defects and operational issues for the unit.
  • 161 KM* warranty on all parts and OEM accessories.
  • 365-day or 1610 KM* warranty for the bike power system (motor, controller, and battery).

*Whichever comes first. Warranty coverage begins on the date of product delivery.

‍

Warranty Exclusions

Rawrr Inc. excludes normal wear components such as brake components, seals, bearings, chains, suspension components, tires, rims, grips, and handlebars.

The warranty also excludes any failures caused by:

  • Misuse, neglect, accidents, or collisions.
  • Altering factory wiring or installing non-genuine Rawrr parts.
  • Racing or competition use.
  • Improper charging, discharging, or storage of the unit.

Any misuse or modification will void this Limited Warranty.

‍

Warranty is transferable with certain criteria. Read full policy to learn more.

Submit a warranty Claim

Care Instructions

  • Washing Instructions:
    While the Mantis bike is water-resistant, we do not recommend spraying water in certain areas. Specifically avoid spraying water at the controls on the handlebar and at the area around the charging port.‍

  • Where to Avoid:
    ‍Avoid spraying water at the dash, throttle, handlebar controls, and charging port areas. Instead, use a damp cloth to clean off these areas.‍

  • Where you can spray water:
    ‍You can spray water at or below the fender in the front, the frame below the seat, swing arm, rear wheel, rear suspension, and rear fender.

  • Maintenance:
    ‍Make sure to change your gear oil at regular intervals. Refer to your user manual or our service & support page for instructions and information on servicing your Mantis.

Manufacturing Time

  • With the standard configuration, we can finish 72 bikes of Mantis series bikes each day.
  • The scheduled time depends on the order density.
  • Any change in configuration will affect the procurement time and thus the overall manufacturing time.
  • General Lead time for an order within 100 units of bikes varies from 14 to 45 days.

In the box

  • 1x Rawrr Mantis Bike
  • 1x 72V Rawrr Mantis X Battery
  • 1x 72V Charger
  • 1x Mantis Toolbox (includes all tools needed for assembly)
  • 1x User Manual
