Off-Road / Road-Legal L3E

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

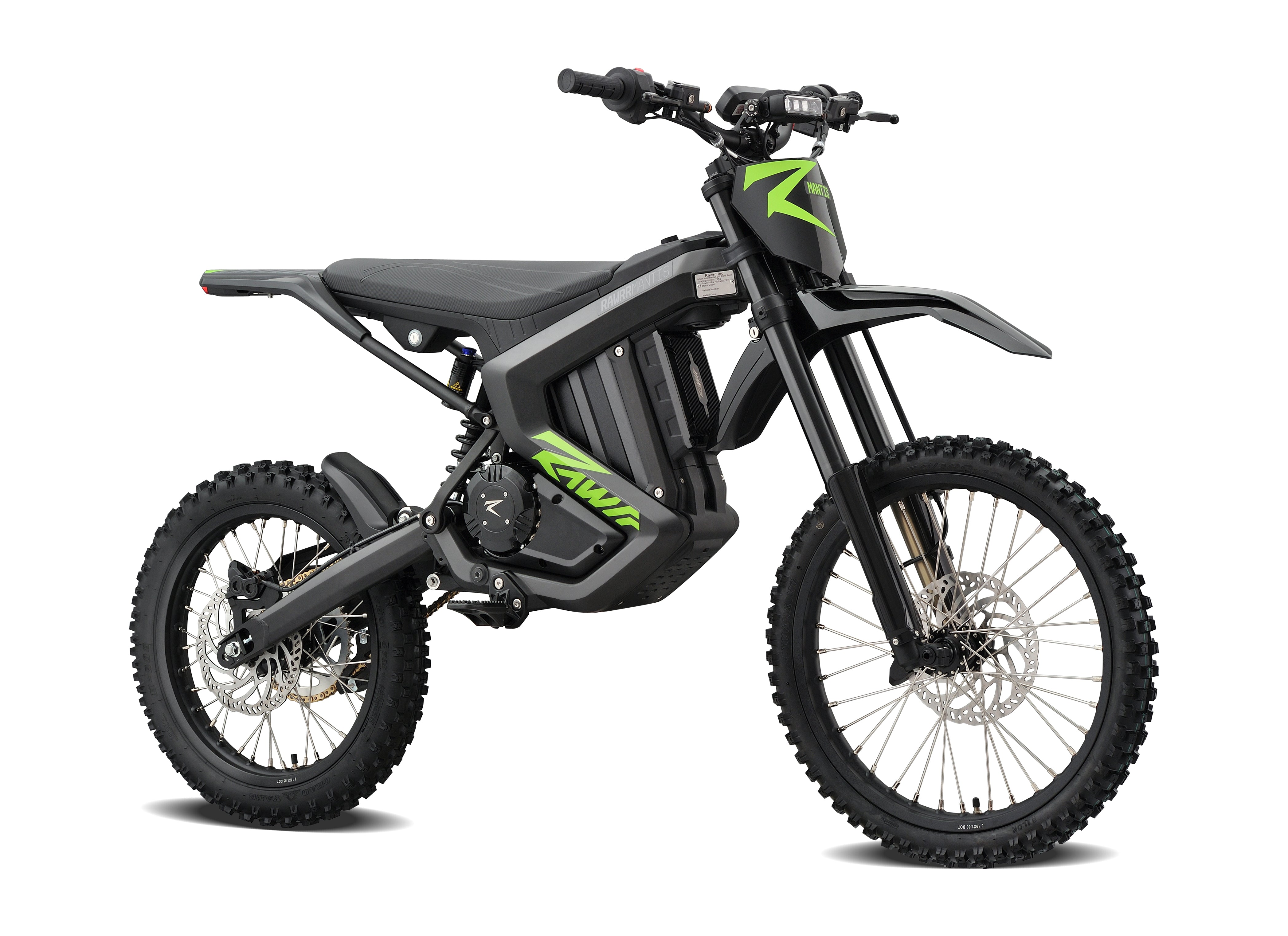

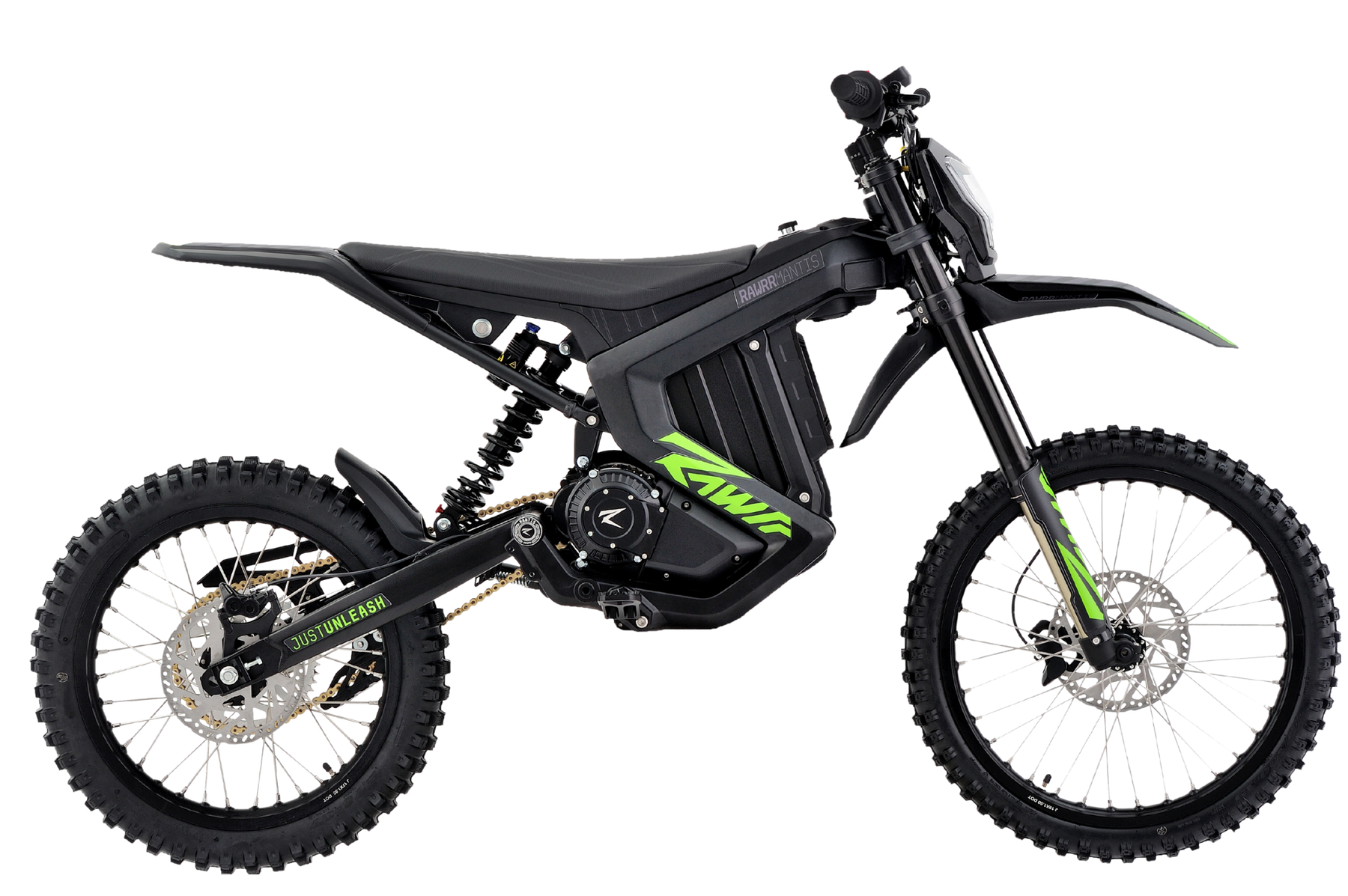

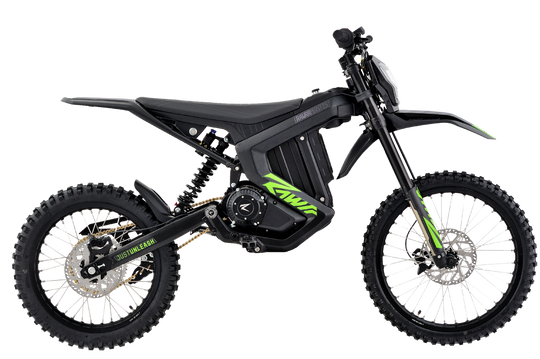

The 72V Mantis X: Redefining Electric Riding.

This is more than just an electric dirt bike; it's a testament to innovation. With its upgraded mechanical structure, the Mantis X allows you to seamlessly transition from city streets to challenging trails, unlocking a new era of electric adventure. Experience the future of riding with the Mantis X.

  • Rated Output Power: 4000W
  • Max Output Power: 7500W

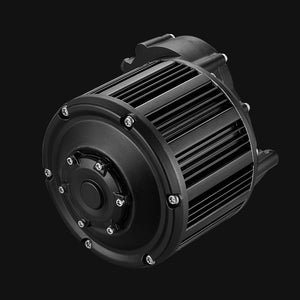

  • Motor Type: PMSM
  • Tire Size: F: 70/100-19 R: 2.75-17
  • Frame Material: Aluminum Alloy 6061
  • Battery Capacity: 72V/30AH (2160WH)

  • Speed Up: 0-30 KM/H: 2s; 0-50 KM/H: 4s; 0-80 KM/H: 10.8s

  • 15-25 days for orders of 45 units or Less.
  • 20-45 days for orders of 100 units or less.
  • The above lead time is based on FOB Ningbo.
  • Any change in configuration or sticker may add more manufacturing time.

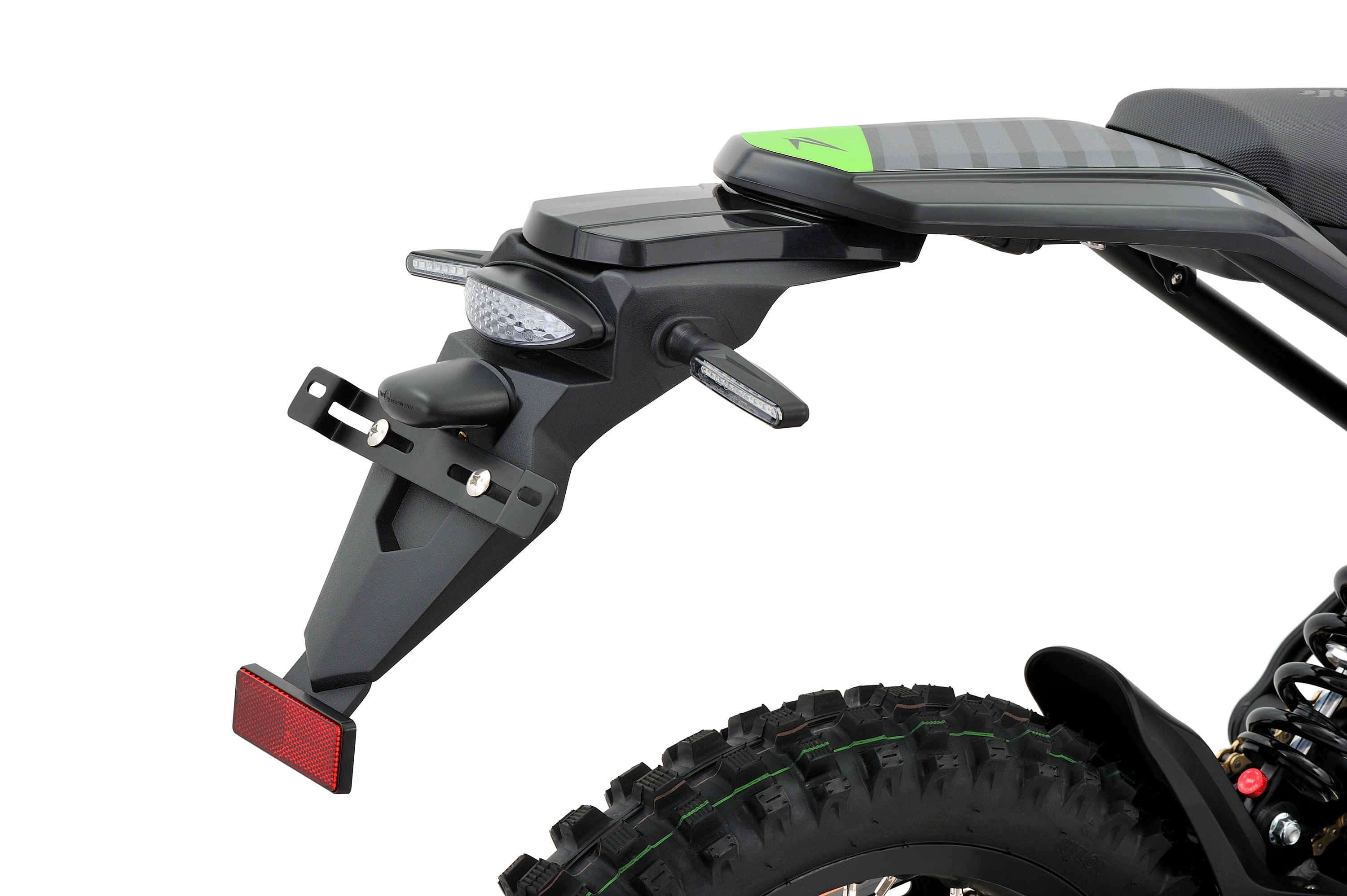

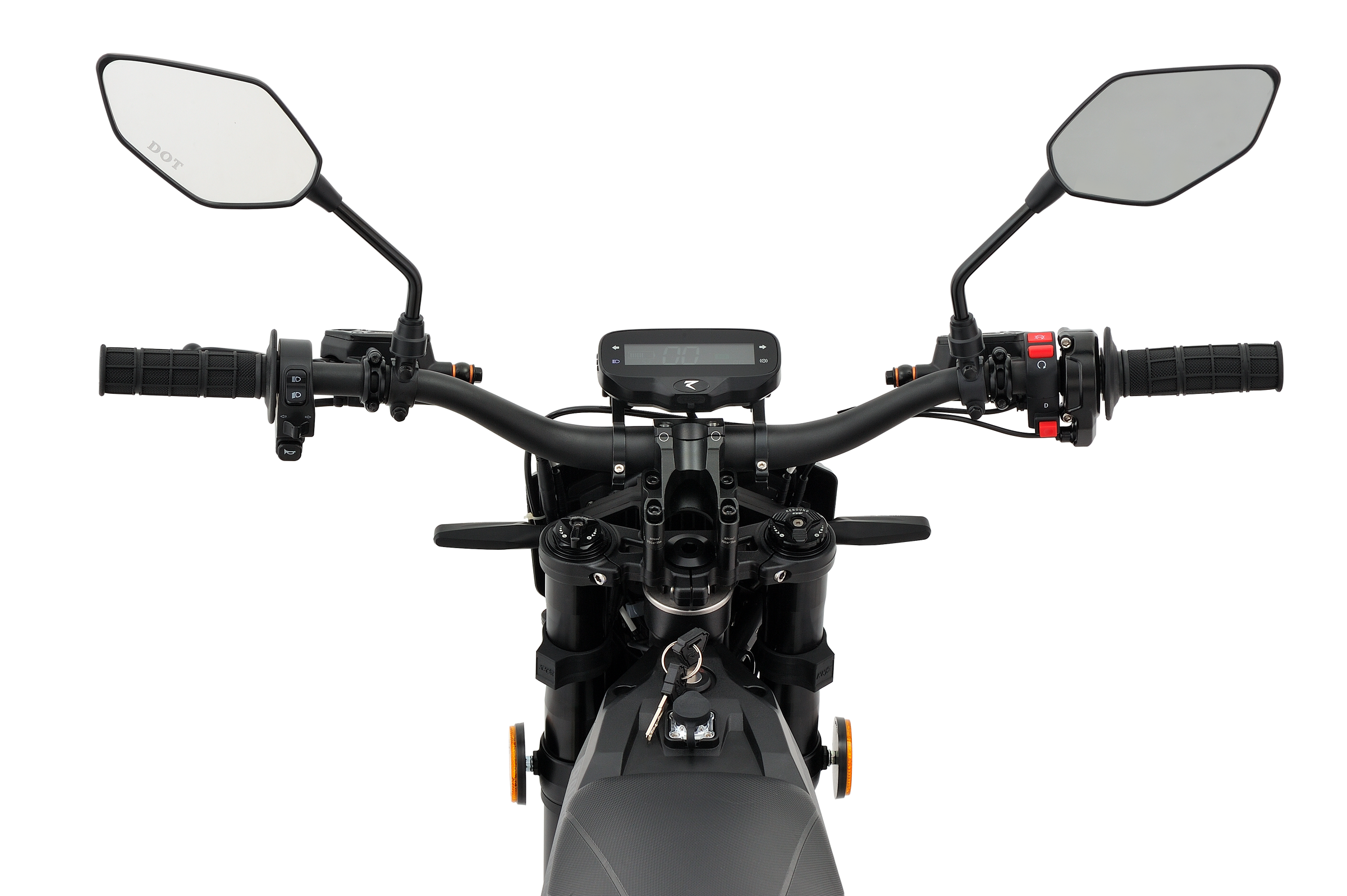

ROAD LEGAL EDITION

Road Legal Version-L3E Available

Built for the Road, Born for the Dirt.
Now available with official L3e road-legal certification. Fully equipped with street safety gear so you can ride legally from your driveway straight to the trails.
REQUEST ROAD LEGAL QUOTE
01 / 7
ROAD LEGAL EDITION Road Legal Version-L3E Available
Road Legal Version-L3E Available
01 / 7
Mantis X

Redefining Electric Riding

Powered by a 7500W peak PMSM motor delivering up to 80 km/h. Experience seamless transitions from urban streets to rugged trails.

Mantis X

Command the Trail

Uncompromising quality is our standard. Before reaching your door, every Mantis X undergoes a comprehensive U.S. inspection to guarantee exact screw torque, dialed-in suspension, and perfect wheel alignment. Unbox, power up, and ride with complete confidence.
Command the Trail

See the Mantis X in Action

Watch the Mantis X take on real-world terrain. From immediate throttle response and agility to rugged trail capability.

Class-Leading Safety Features.

Rawrr Safety Integration

Brake Override

For new riders, pulling the brakes will also cut the power. This allows the bike to safely come to a complete stop without worry of unwanted throttle. Though we know that as you advance, you won't want this behavior, it can easily be disabled in the Rawrr App.
Learn about RSI
Brake Override
Mantis X

Tech Specs

80 Km/H
Top Speed
45 Degrees
Climbing Ability
100 Km
Range
260 NM
Max Torque
Full specifications 3 categories
01

Mechanical

Frame Material
6061 Alluminum Alloy
Front Brake Rotor Size
220 MM
Rear Brake Rotor Size
203 MM
Power Delivery
Gearbox and Chain Driven
Front Fork Travel
200 MM
Brake Type
4-Piston Hydraulic Disc Brakes
02

Electrical

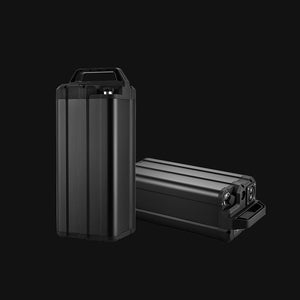

Battery Info
72V 30Ah
Battery Type
Lithium Ion
Max Output Power
7500 W
Nominal Power Output
4000 W
Motor Type
PMSM
Drive Modes
Eco / Sport / Race
03

Dimensions

Length*Width*Height
1875*795*1110 MM

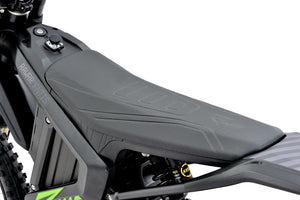

Seat height
860 MM
Height of handlebar
1050 MM
Wheelbase
1245 MM
Front Tire Size
70/100-19
Rear tire size
2.75-17
Mantis X

Additional Info

In the box

  • 1x Rawrr Mantis Bike
  • 1x 72V Rawrr Mantis X Battery
  • 1x 72V Charger
  • 1x Mantis Toolbox (includes all tools needed for assembly)
  • 1x User Manual

Manufacturing Time

  • With the standard configuration, we can finish 72 bikes of Mantis series bikes each day.
  • The scheduled time depends on the order density.
  • Any change in configuration will affect the procurement time and thus the overall manufacturing time.
  • General Lead time for an order within 100 units of bikes varies from 14 to 45 days.

Care Instructions

  • Washing Instructions:
    While the Mantis bike is water-resistant, we do not recommend spraying water in certain areas. Specifically avoid spraying water at the controls on the handlebar and at the area around the charging port.‍

  • Where to Avoid:
    ‍Avoid spraying water at the dash, throttle, handlebar controls, and charging port areas. Instead, use a damp cloth to clean off these areas.‍

  • Where you can spray water:
    ‍You can spray water at or below the fender in the front, the frame below the seat, swing arm, rear wheel, rear suspension, and rear fender.

  • Maintenance:
    ‍Make sure to change your gear oil at regular intervals. Refer to your user manual or our service & support page for instructions and information on servicing your Mantis.

Warranty

Rawrr Inc. provides the following warranty coverage:

  • 161 KM* warranty on workmanship defects and operational issues for the unit.
  • 161 KM* warranty on all parts and OEM accessories.
  • 365-day or 1610 KM* warranty for the bike power system (motor, controller, and battery).

*Whichever comes first. Warranty coverage begins on the date of product delivery.

‍

Warranty Exclusions

Rawrr Inc. excludes normal wear components such as brake components, seals, bearings, chains, suspension components, tires, rims, grips, and handlebars.

The warranty also excludes any failures caused by:

  • Misuse, neglect, accidents, or collisions.
  • Altering factory wiring or installing non-genuine Rawrr parts.
  • Racing or competition use.
  • Improper charging, discharging, or storage of the unit.

Any misuse or modification will void this Limited Warranty.

‍

Warranty is transferable with certain criteria. Read full policy to learn more.

Submit a warranty Claim
